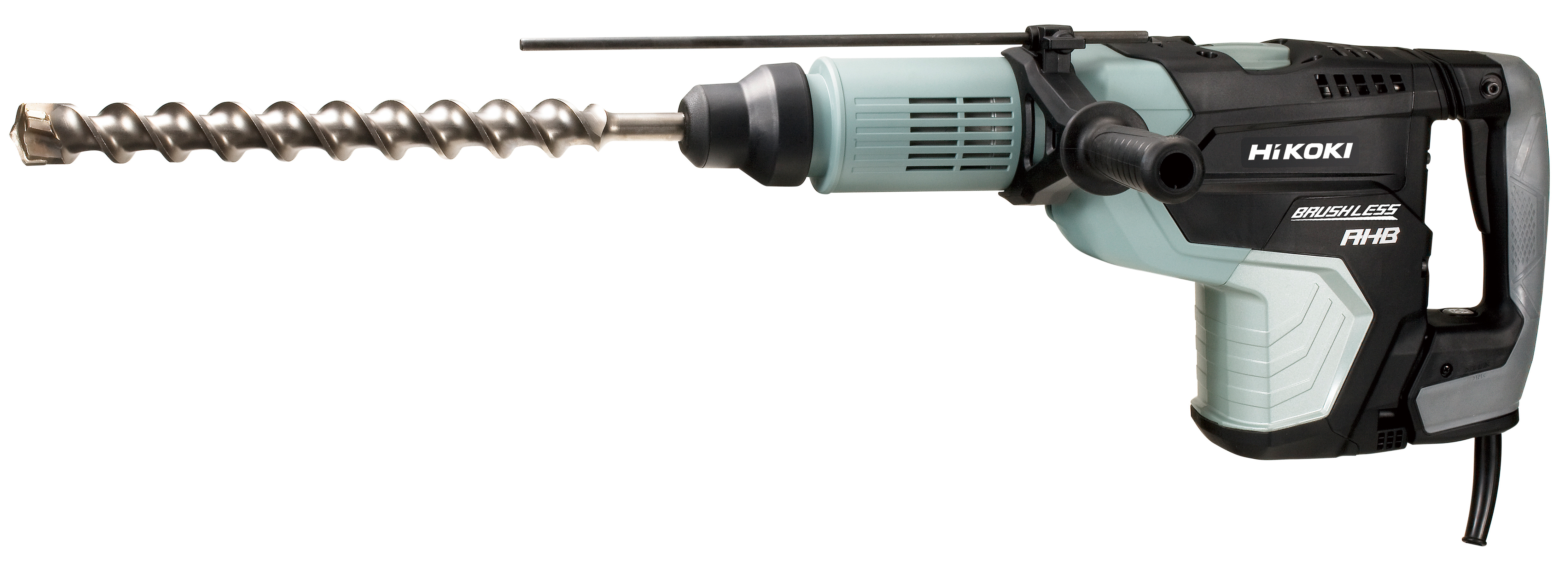

DH52MES9Z

Features

  • Maintenance-free
  • Fastest drilling speed and highest demolition performance in its class even at voltage drop
  • Compatible with engine generators
  • Fastest*1 drilling speed and highest*1 demolition performance in its class
  • Vibration-absorbing handle
  • The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder
  • Control panel
  • One push action for quick bit mounting
  • Large change lever
  • Large trigger switch
  • Continuous operation function (available for the Hammering Mode)

Specifications

Capacity Drill bit: 52mm (2-1/16")
Capacity Core bit: 160mm (6-1/4")
Power Input 1,500W
Bit Shank SDS max
No Load Speed 110V, 120V, 127V: 110 - 260/min
No Load Speed 220V, 230V, 240V: 110 - 280/min
Full Load Impact Rate 110V, 120V, 127V: 1,000 - 2,200/min
Full Load Impact Rate 220V, 230V, 240V: 1,000 - 2,400/min
Overall Length 585mm (23-1/32")
Weight (including side-handle) 11.0kg (24.2lbs.)
Vibration Total Values - (triax vector sum)*2 Hammer drilling into concrete, Vibration emission value : ah, HD = 14.0m/s2, Uncertainty K = 1.5 m/s2
Vibration Total Values - (triax vector sum)*2 Equivalent chiselling value, Vibration emission value : ah, CHeq = 15.5m/s2, Uncertainty K = 1.5m/s2
Standard Accessories Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case
Vibration Total Values (triax vector sum)*2 : Hammer Drilling into Concrete Vibration emission value ah, HD = 14 m/s2, Uncertainty K = 1.5 m/s2
Vibration Total Values (triax vector sum)*2 : Equivalent Chiseling Value Vibration emission value ah, CHeq = 15.5 m/s2, Uncertainty K = 1.5 m/s2
