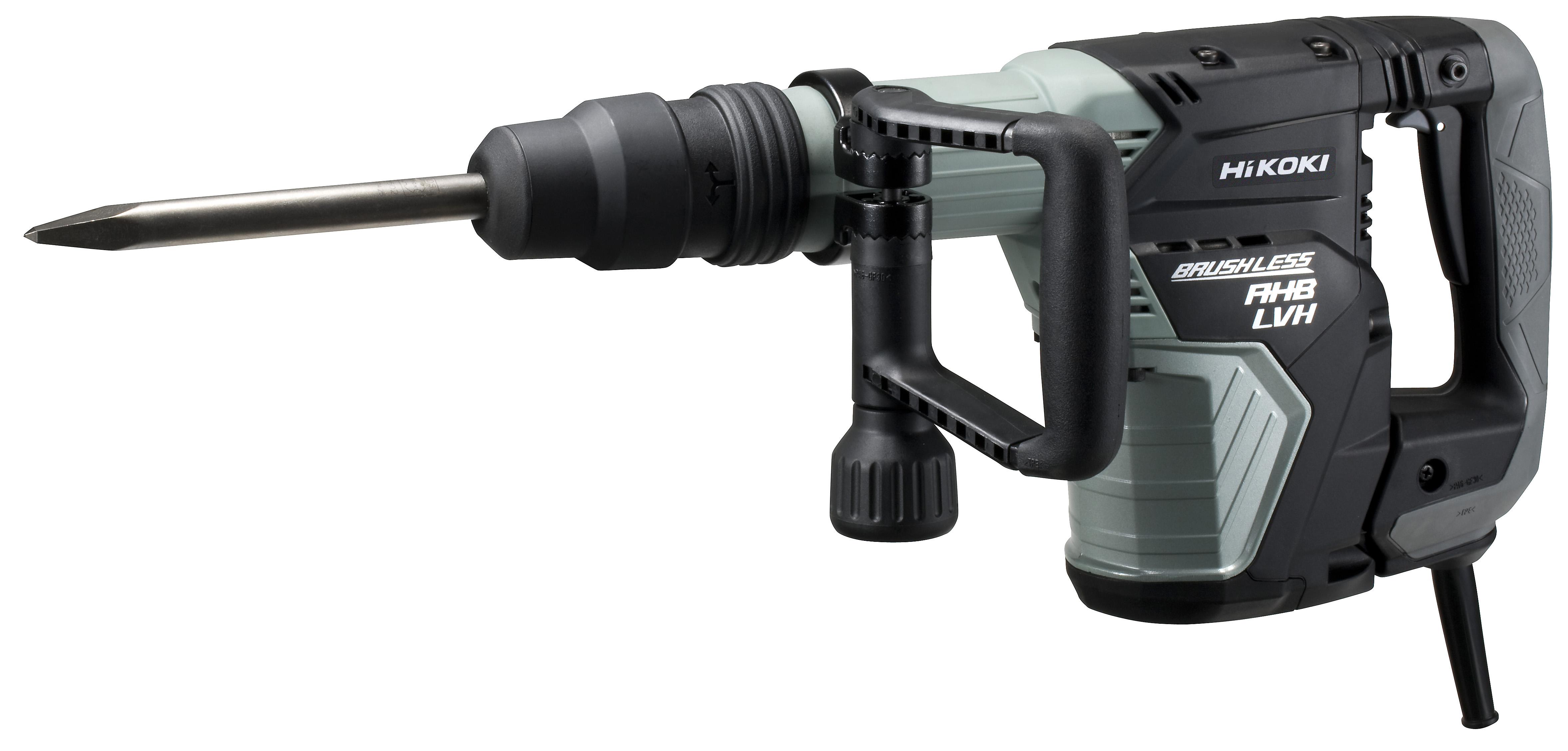

DH45MES9Z

Features

  • Maintenance-free
  • Fastest drilling speed and highest demolition performance in its class even at voltage drop
  • Compatible with engine generators
  • Fastest* drilling speed and highest* demolition performance in its class
  • Vibration-absorbing handle
  • The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder
  • Control panel
  • One push action for quick bit mounting
  • Large change lever
  • Large trigger switch
  • Continuous operation function (available for the Hammering Mode)
  • Our Original Brushless Motor Technology
  • Long Lifetime, Maintenance-Free
  • Compact, Lightweight
  • Compatible with Engine Generators
  • Stable Performance during Voltage Drops
  • Low vibration handle
  • The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder
  • Push-button, constant speed control with variable speed
  • One push action for quick bit mounting
  • Tool bit angle adjustment
  • Large trigger switch

Specifications

Full Load Impact Rate 1,430 – 2,850/min
Bit Shank SDS max
Overall Length 480mm(18-29/32”)
Weight*1 7.0kg(15.4lbs.)
Vibration Total Values - (triax vector sum)*2 Chiseling - Vibration emission value ah, CHeq = 11.0m/s2, Uncertainty K = 1.5m/s2
Standard Accessories Bull Point, Side Handle, Carrying Case
Vibration Total Values - (triax vector sum)*2 Chiseling, Vibration emission value ah, CHeq = 11.0m/s2, Uncertainty K = 1.5m/s2
Capacity : Drill bit 45mm (1-3/4")
Capacity : Core bit 125mm (4-29/32")
Power Input 1,500W
No Load Speed 220V, 230V, 240V: 120 - 310/min
Full Load Impact Rate 220V, 230V, 240V: 1,200 - 2,950/min
Overall Length 535mm (21-1/16")
Weight (including side-handle) 9.0kg (19.8lbs.)
Vibration Total Values (triax vector sum)*2 : Hammer Drilling into Concrete Vibration emission value ah, HD = 13.5 m/s2, Uncertainty K = 1.5 m/s2
Vibration Total Values (triax vector sum)*2 : Equivalent Chiseling Value Vibration emission value ah, CHeq = 14.2 m/s2, Uncertainty K = 1.5 m/s2
Standard Accessories Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case
