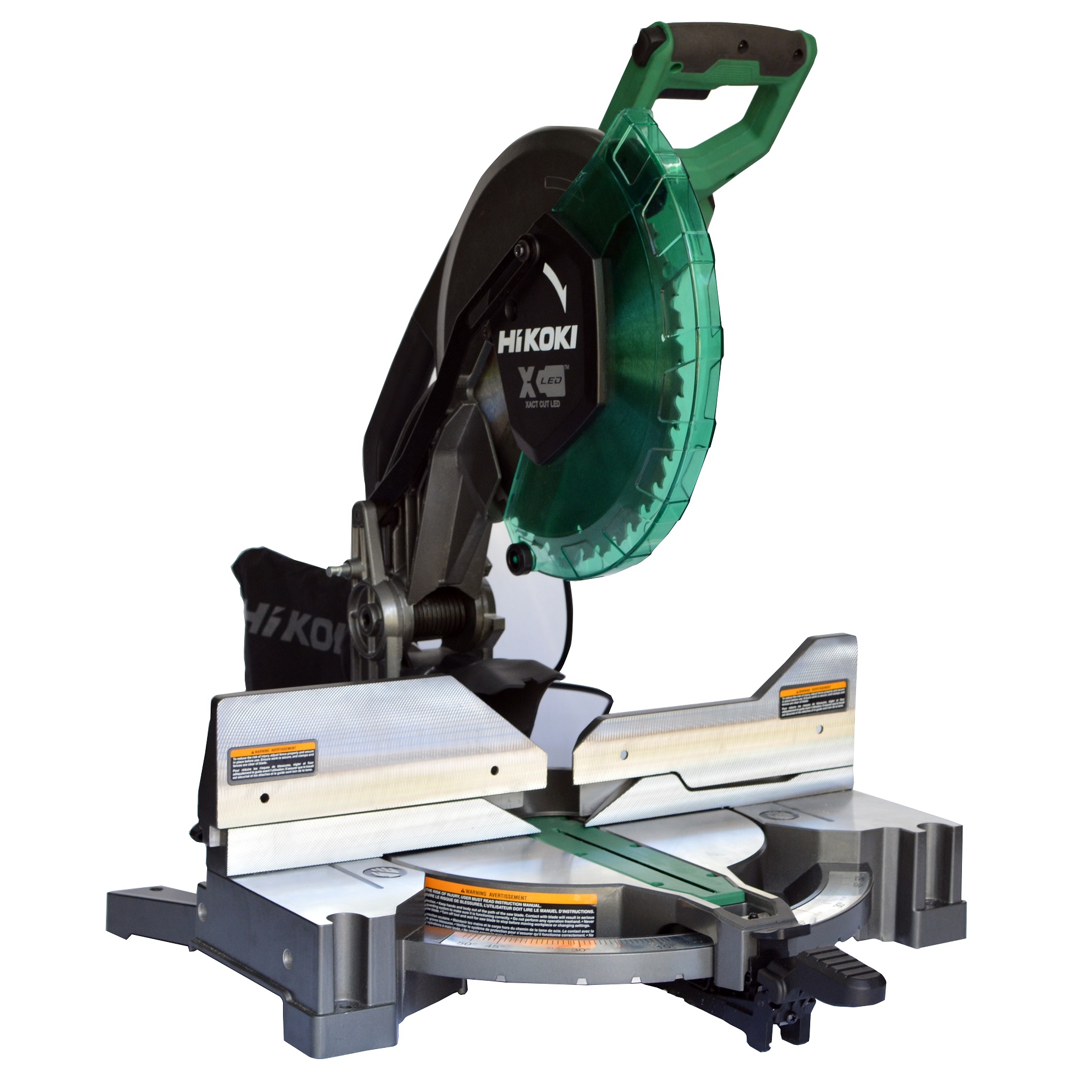

C12FDHBS9Z

Features

  • XACT CUT LED SHADOW LINE SYSTEM: With Xact Cut LED Shadow Line System that accurately indicates where the blade will cut on the material in any lighting condition.
  • COMPOUND CUTTING : Wide range of miter and bevel cutting options.
  • FENCES : 7” Tall sliding fences to support vertically & nested cut molding.
  • EXTRA LARGE BASE : For great support and handling of material.
  • ADJUSTMENT : Up - front miter and locks to easily adjust cut angles to best suit the application
  • NEW ERGONOMIC D - HANDLE : Designed for less Vibration.

Specifications

Blade Diameter 12”
Arbor 25mm
No-Load Speed 4,300 RPM
Miter Angle 0-52˚ L & R
Bevel Angle 0-48˚ L & R
Cut Capacity at 90° 2-3/4 x 8 or 7-13/16 x 1-1/16 in
Cut at 45° Miter (Left) 2-3/4 x 5-11/16 or 4-13/16 x 1-3/16 in
Cut at 45° Miter (Right) 2-3/4 x 5-11/16 or 4-1/32 x 19/32 in
Cut at 45° Bevel (Left) 1-31/32 x 8 in
Cut at 45° Bevel (Right) 11/16 x 8 in
Cut at 45° Miter/Bevel (Left) 1-3/16 x 5-11/16 in
Cut at 45° Miter/Bevel (Right) 5-11/16 x 11/16 in
Weight 20 Kg
