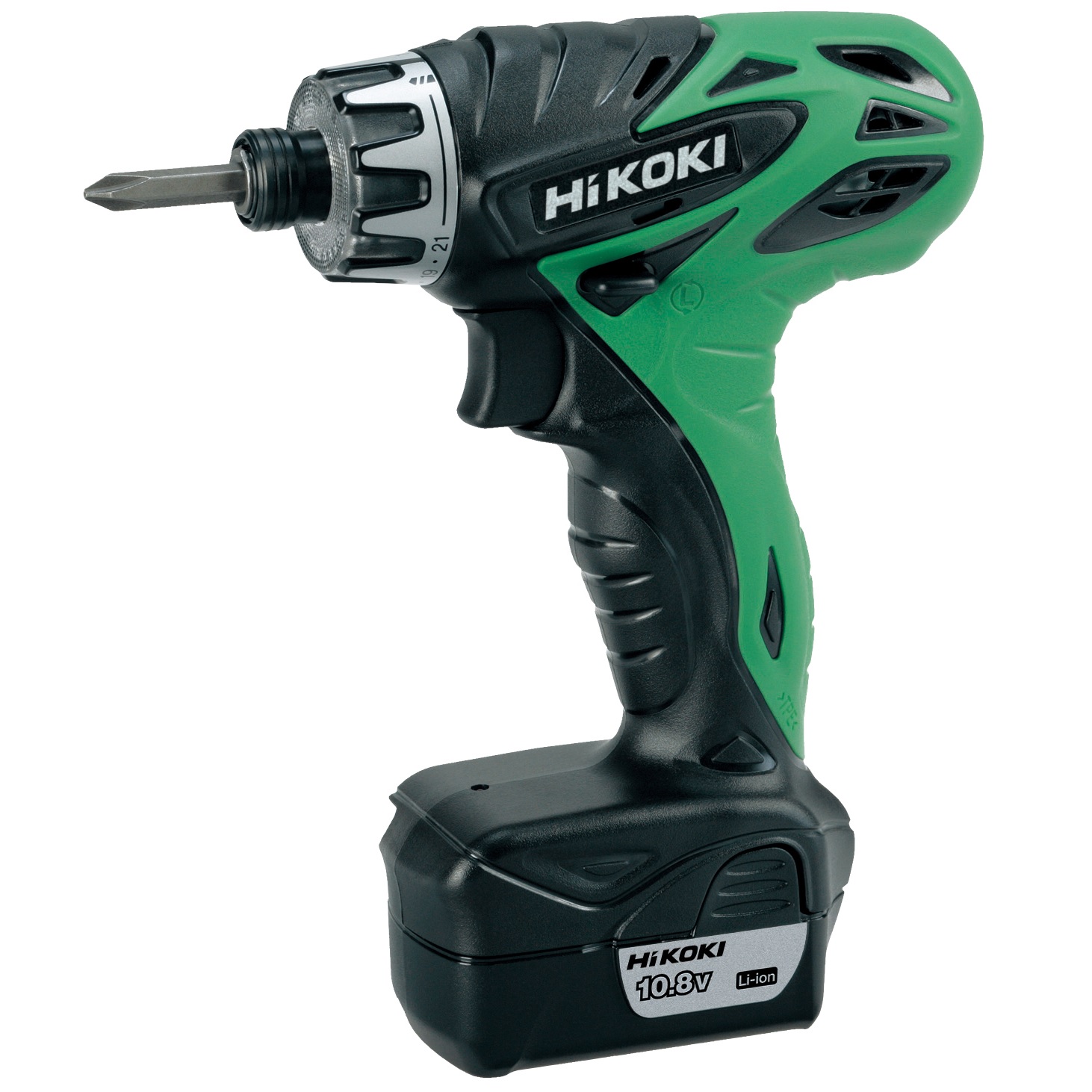

DB10DLS9Z
Features
Max lock torque: 10Nm (89in.-lbs.
LED light
6.35mm (1/4") hexagon chuck
Adjustable clutch: 21-stage torque
Compact and lightweight at 0.8kg
Soft grip handle
Includes cassette Lithium-ion battery and charger
Specifications
Capacity: Soft Wood
18mm (11/16")
Capacity: Wood Screw
6mm dia. x 38mm (#14 x 1-1/2")
Capacity: Machine Screw
6mm (1/4")
Drive
6.35mm (1/4") Hex Bit Shank
Maximum Torque in Lock
10Nm (89 in.-lbs.)
Torque Setting
1.0-6.0Nm (9-53in.-lbs.)
Battery Voltage
10.8V
Battery Capacity
1.5Ah
Charging Time
40min.
No Load Speed
0 - 400 / min.
Overall Length
147mm (5 - 3/4")
Weight
0.8kg (1.8 lbs.)
Standard Accessories
Battery (BCL1015), Charger (UC10SFL), Driver Bit, Carrying Case
